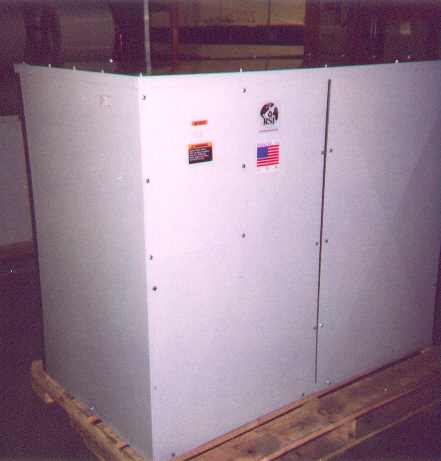

 Air-Cooled VPAC for use
with Remote Condenser (Front)
Units come with a one year limited parts warranty for extended warranty see
Options.
|
System Description
Air-Cooled Condensing unit is an electrical cooling unit utilizing scroll compressors for cooling duty. Unit shall discharge supply horizontally.
Air-Cooling Condenser For use with VPAC is an electrical cooling unit utilizing without compressors. Unit shall discharge supply horizontally.
All units are factory run tested prior to shipment, certified (ITS/ETL)
per UL1995, CSA C22.2, MEA, NY Dept. of Buildings. RSI products are available
for OEM brand labeling.
Features
-
Floor-By-Floor Design
-
Heavy Gauge Gray-Pearl Painted Cabinet with Removable Panels
-
Unit Frame is Free-Standing Post Construction Welded & Bolted
-
Removable integral 304SS stainless steel condensate sloped drain pan
-
Voltage: 208/3/60 480/3/60 or 575/3/60
-
Constant Volume w/Factory Mounted Controls
-
Horizontal Supply Air Discharge
-
R-22 Refrigerant
-
Coils specially designed for independent, two-circuit operation
-
Fan Wheels are double-inlet type with forward curved blades
-
Pre-Wired Electrical Control Centers
-
Automatic Reset and Low Pressure Switches
-
Motors are E+ open drip proof, thermally protected internal through 5 HP external through
7.5 HP and up
